TitanMig 350S /350SL/350SP

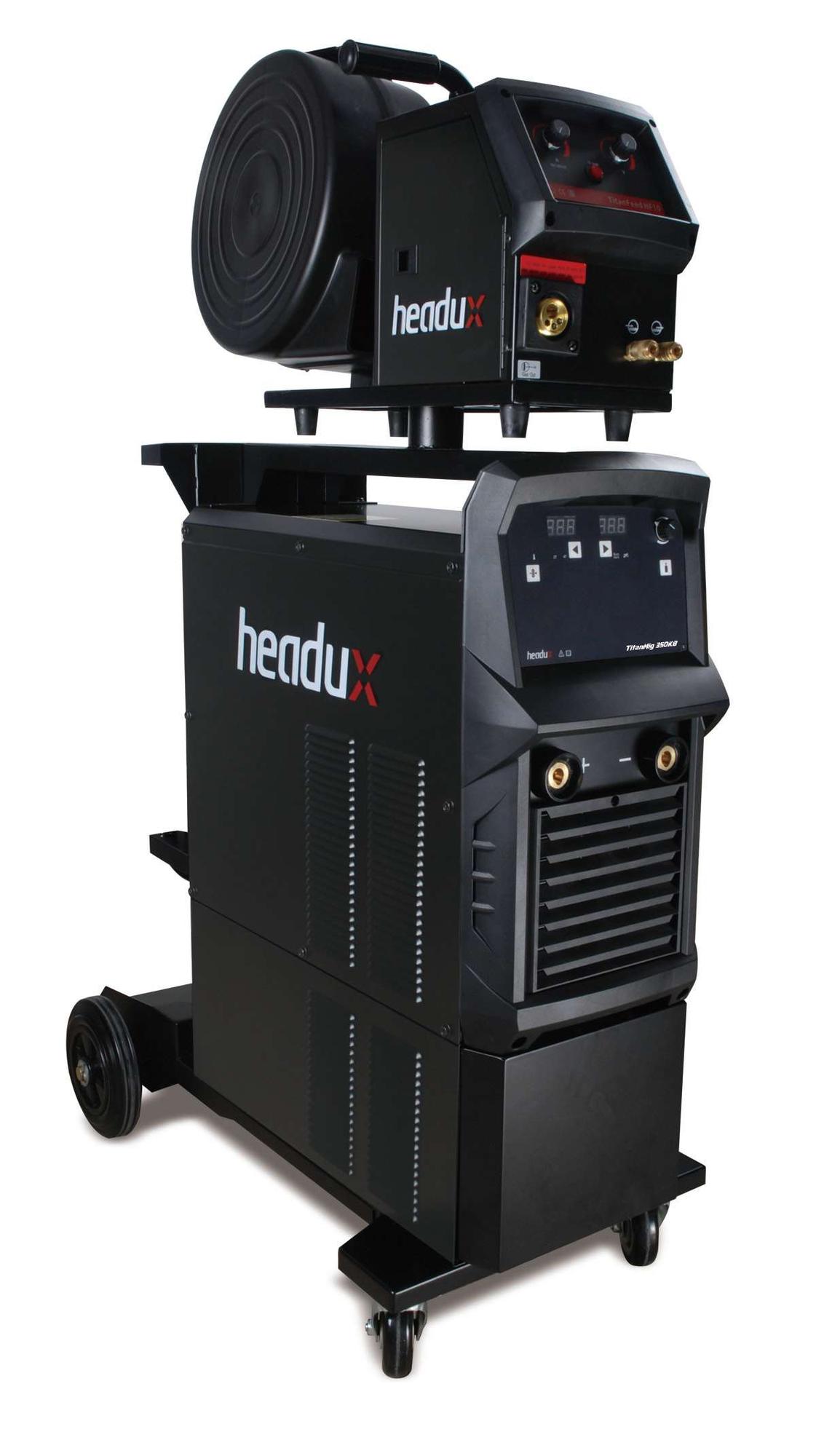

TitanMig 350S/350SL/350SP
Awesome welding ability in a portable way


● Designed for thin steel sheet, low heat output

● Fully digital synergic inverter

Managed by the high speed micro processor, it provides you with perfect arc control, improved droplet detachment and controlled ignition properties.

● Excellent Welding Performance

Stable dip-transfer arc process, Low-spatter, Fast welding process.

● High Welding Speed and Efficiency

With Headux patented control software, it helps the users save time on setup of machine and increase the productivity

● User Friendly

Simple interface, Easy to access as well as quick and easy parameter configuration, system operation

● Intelligent power sources with synergic and pulsed MIG/MAG and stick (MMA) welding process.


TitanMig 350S, Low Heat Output

TitanMig 350 SL—Low Heat Output, Low Spatter

TitanMig 350SP—Low Heat Output, Low Spatter, Pulse Welding for Steel& Stainless Steel







TitanMig350STitanMig350SLTitanMig350SP
Input voltage(A)3P~380(+25%,)50-60Hz3P~380(+25%,)50-60Hz3P~380(+25%,)50-60Hz
Rated input power(KVA)151515
Input Current22.822.822.8
Rated output voltage(V)12~3812~3812~38
Welding Range(A)30~35030~35030~500
Open circuit voltage707070
Output 40°C60%60%60%
Duty cycle 100%,40°C275275390
Wire feed speed(m/min)0-240-240-25
Wire diameter(mm)0.8/1.0/1.20.8/1.0/1.21.0/1.2/1.6
Arc adjustment-9 soft to +9 hard (default 0)-9 soft to +9 hard (default 0)-9 soft to +9 hard (default 0)
Cool wayGas(optional water cooling)Gas(optional water cooling)Gas(optional water cooling)
Efficiency at 100 % ED878787
Power factor at 100%ED0.90.90.9
Degree of ProtectionIP23IP23IP23
Insulation ClassFFF
Dimensions LWH(mm)685x300x560685x300x560685x300x560
Weight(kg)484852
other versionRobticsRobticsRobtics
