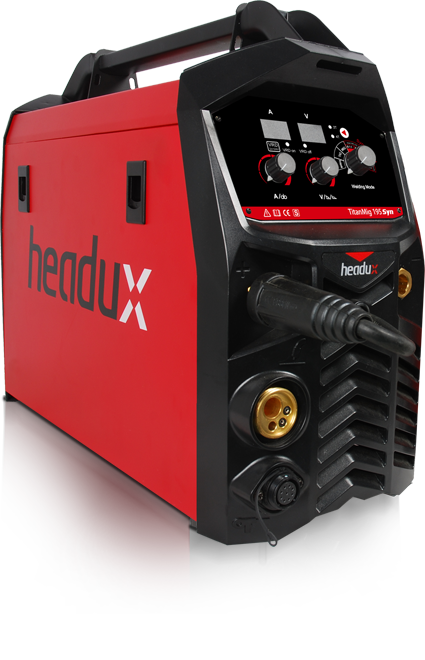

TitanMig 195/225 Syn

Awesome welding ability in a portable way
Portal multi-process
Synergic MIG for 0.8 and 0.9mm steel wire
Spool gun interface


Just big enough to weld everything you want in a portable way.


A versatile industrial machine for the mobile welder, TitanMig 195/225 pack huge MIG/MAG welding capacity and quality into their portable, compact size. Choose from either 195 A or 225 A models, could deliver their welding power from a 16 A, 1-phase mains supply.


TitanMig 195/225 delivers premium results wherever your work takes you. It offers synergic Programs for 0.8mm and 0.9mm solid welding wires. The MIG function allows you to weld with both Gas Shielded and Gasless wire applications giving excellent, professional welding results.




The added Lift-Arc DC TIG capability delivers perfect arc ignition every time and a remarkably smooth stable arc produces high quality TIG welds. TIG functionality includes adjustable Down Slope & Post Gas as well as being gas solenoid-valve equipped.


The stick welding (MMA) capability delivers easy electrode welding with high quality results, including cast Iron, stainless and low hydrogen.





The Spool gun is widely used for aluminum wire and other softer wires that don’t have the column strength to feed through standard MIG torches.





Features

 Innovative IGBT Inverter Technology

MIG/MAG with Gas and Gasless wire function
- Synergicprograms for 0.8 / 0.9 Mild Steel
- Soft Start - Self Adaptive Crater Fill
- Wire Inch


•  DC TIG
- Lift Arc ignition (prevents tungsten sticking during arc ignition)
- 2T 4T Trigger Control
- Adjustable Downslope


 Stick Electrode (MMA) Function

- VRD (Voltage Reduction Device)
      - Hot start (improves electrodestarting)

- Adjustable Arc Force


 Gas Check / Inch Wire

 LED Digital Display

 Euro MIG torch connection

•  Tolerant to variable power supply

 Suitable for 0.6 to 1.0 mm wires

 Spool gun interface

•  Internal wire feeder, gear driven for up to200mm Ø spool






Technical Specification


TMP 2700C

Power Supply / Phases (V-Ph)

220/230/240 V 1 Phase

Duty Cycle@40°c   to AS/NZ60974

35% @ 270Amps MIG (35% @ 270 Amps TIG, 35% @ 270 Amps   MMA)

Rated Output Power Rate

270/27.5V

Rated Input Current

50 A

Power Factor

0.75

Efficiency

90%

Gas pre-flow time (Preg)

015s

Post-flow time(Posg)

015s

Soft start speed (Stfd)

Auto0.522 m/min

Wire Feeder Type

Gear Driven 4 Roll

Protection Class

IP 21S

Insulation Class

H

Dimensions Power Source (LxWxH)

685x295x560mm

Weight Power Source

38 Kgs
