TitanMig 268/318/368 iXP Product Catalogue

Mobile, Intelligent, Versatile-the ultimate professional multi-process pulse welder Unleash the Power of Versatility with the TitanMig 268/318/368 iXP www.headux.com TitanMig 268/318/368 iXP Weld Function & Process: Pulse MIG Synergic DC MIG Fluxcored Expert FastMig Manual MIG Lift-TIG MMA

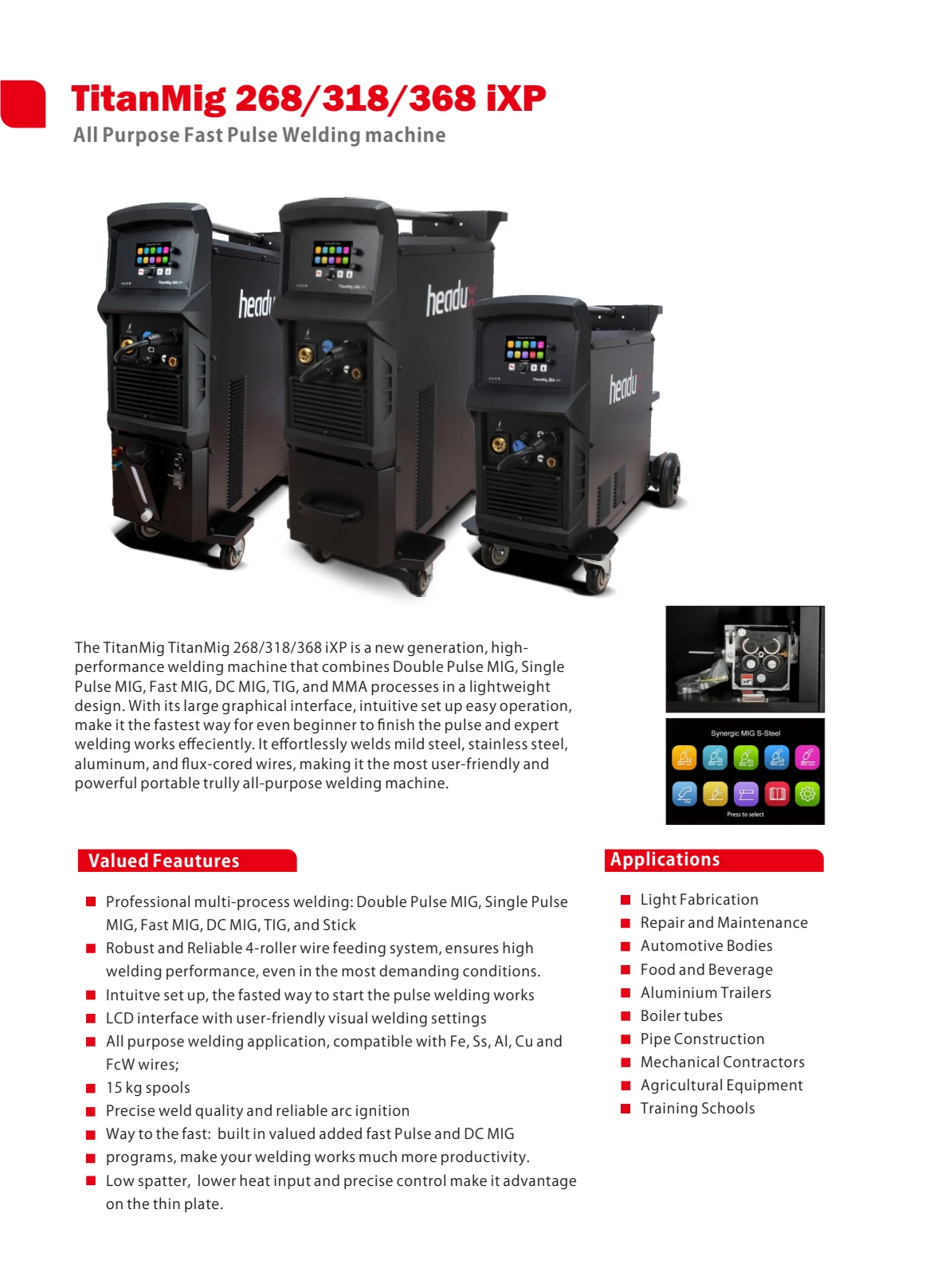

The TitanMig TitanMig 268/318/368 iXP is a new generation, high- performance welding machine that combines Double Pulse MIG, Single Pulse MIG, Fast MIG, DC MIG, TIG, and MMA processes in a lightweight design. With its large graphical interface, intuitive set up easy operation, make it the fastest way for even beginner to finish the pulse and expert welding works effeciently. It effortlessly welds mild steel, stainless steel, aluminum, and flux-cored wires, making it the most user-friendly and powerful portable trully all-purpose welding machine. All Purpose Fast Pulse Welding machine Valued Feautures Professional multi-process welding: Double Pulse MIG, Single Pulse MIG, Fast MIG, DC MIG, TIG, and Stick Robust and Reliable 4-roller wire feeding system, ensures high welding performance, even in the most demanding conditions. Intuitve set up, the fasted way to start the pulse welding works LCD interface with user-friendly visual welding settings All purpose welding application, compatible with Fe, Ss, Al, Cu and FcW wires; 15 kg spools Precise weld quality and reliable arc ignition Way to the fast: built in valued added fast Pulse and DC MIG programs, make your welding works much more productivity. Low spatter, lower heat input and precise control make it advantage on the thin plate. TitanMig 268/318/368 iXP Specifications Model TitanMig 268 iXP TitanMig 318 iXP TitanMig 368 iXP TitanMig 368 iXP-W Ordering Information 3m MX24 MIG Torch with HEADUX LOGO( Spanner*1pcs) 3m 25mm² earth lead (300A Earth clamp) 3m Gas Hose 1.2A Contact Tip,M6*28 Graphite Wire inlet guide Liner 3.9 m for Aluminium wire Feed Roller for 1.0- 1.2 (U-groove)*2pcs 上摇臂配可拆卸平轮及U型轮配(SSJ-15)DC24V TIG torch 4M TIG torch 8M SPOOL GUN 4m SPOOL GUN 8m 3m 25mm² welding lead (200A Electrode Holder) A13303-009 A80403-001 A80407-011 A13309-019 A13502-068 A13310-300 A13502-030 A13502-096 A13301-006 A13301-031 A13303-081 A13303-095 A80404-013 Standard Fittings Headux Code Options & Accessories Headux Code Options & Accessories Light Fabrication Repair and Maintenance Automotive Bodies Food and Beverage Aluminium Trailers Boiler tubes Pipe Construction Mechanical Contractors Agricultural Equipment Training Schools Applications Input Voltage Main fuse(A) Process Rated Input Power KVA Rated output KVA No-load voltage (V) Current range (A) Voltage range (V) Wire feed speed range(m/min) Electrode diameter applicable (mm) Duty cycle Imax (40℃) Duty cycle 100% (40℃) Duty cycle 60% (40℃) Wire Diameter (mm ) Efficiency Power factor Protection class Insulation class Dimensions (L*W*H) Weight (Kg) MIG 11 8.7 50~300 16.5~29 MMA 12.1 9.6 10~300 20.4~32 MIG 13.9 11 50 ~ 350 16.5 ~ 31.5 1Phase~AC 230 (±15%) /50-60Hz 3 Phases ~AC 400V (±15%)/ 50-60Hz 3 Phases ~AC 400V (±15%)/ 50-60Hz MMA 15.1 11.9 10 ~ 350 20.4 ~ 34 MIG 13.9 11 50 ~ 350 16.5 ~31.5 MIG 13.9 11 50 ~ 350 16.5 ~31.5 70 50 1 .5 ~16 0.6/0.8/0.9/1.0/1.2 40% 158A 204A 0.6/0.8/0.9/1.0/1.2 85% 0.7 IP21S F 880x295x616 48 40 70 1.5 ~16 0.6/0.8/0.9/1.0/1.2 60% 232A 300A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 49 40 70 1.5~16 0.6/0.8/0.9/1.0/1.2 60% 271A 350A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 52 40 70 1.5~16 0.6/0.8/0.9/1.0/1.2 60% 271A 350A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 52 MIG 11.1 6.6 50 ~ 250 16.5 ~26.5 MMA 12.6 7.5 10 ~ 250 20.4 ~30 Model TitanMig 268 iXP Model TitanMig 268 iXP

The TitanMig TitanMig 268/318/368 iXP is a new generation, high- performance welding machine that combines Double Pulse MIG, Single Pulse MIG, Fast MIG, DC MIG, TIG, and MMA processes in a lightweight design. With its large graphical interface, intuitive set up easy operation, make it the fastest way for even beginner to finish the pulse and expert welding works effeciently. It effortlessly welds mild steel, stainless steel, aluminum, and flux-cored wires, making it the most user-friendly and powerful portable trully all-purpose welding machine. All Purpose Fast Pulse Welding machine Valued Feautures Professional multi-process welding: Double Pulse MIG, Single Pulse MIG, Fast MIG, DC MIG, TIG, and Stick Robust and Reliable 4-roller wire feeding system, ensures high welding performance, even in the most demanding conditions. Intuitve set up, the fasted way to start the pulse welding works LCD interface with user-friendly visual welding settings All purpose welding application, compatible with Fe, Ss, Al, Cu and FcW wires; 15 kg spools Precise weld quality and reliable arc ignition Way to the fast: built in valued added fast Pulse and DC MIG programs, make your welding works much more productivity. Low spatter, lower heat input and precise control make it advantage on the thin plate. TitanMig 268/318/368 iXP Specifications Model TitanMig 268 iXP TitanMig 318 iXP TitanMig 368 iXP TitanMig 368 iXP-W Ordering Information 3m MX24 MIG Torch with HEADUX LOGO( Spanner*1pcs) 3m 25mm² earth lead (300A Earth clamp) 3m Gas Hose 1.2A Contact Tip,M6*28 Graphite Wire inlet guide Liner 3.9 m for Aluminium wire Feed Roller for 1.0- 1.2 (U-groove)*2pcs 上摇臂配可拆卸平轮及U型轮配(SSJ-15)DC24V TIG torch 4M TIG torch 8M SPOOL GUN 4m SPOOL GUN 8m 3m 25mm² welding lead (200A Electrode Holder) A13303-009 A80403-001 A80407-011 A13309-019 A13502-068 A13310-300 A13502-030 A13502-096 A13301-006 A13301-031 A13303-081 A13303-095 A80404-013 Standard Fittings Headux Code Options & Accessories Headux Code Options & Accessories Light Fabrication Repair and Maintenance Automotive Bodies Food and Beverage Aluminium Trailers Boiler tubes Pipe Construction Mechanical Contractors Agricultural Equipment Training Schools Applications Input Voltage Main fuse(A) Process Rated Input Power KVA Rated output KVA No-load voltage (V) Current range (A) Voltage range (V) Wire feed speed range(m/min) Electrode diameter applicable (mm) Duty cycle Imax (40℃) Duty cycle 100% (40℃) Duty cycle 60% (40℃) Wire Diameter (mm ) Efficiency Power factor Protection class Insulation class Dimensions (L*W*H) Weight (Kg) MIG 11 8.7 50~300 16.5~29 MMA 12.1 9.6 10~300 20.4~32 MIG 13.9 11 50 ~ 350 16.5 ~ 31.5 1Phase~AC 230 (±15%) /50-60Hz 3 Phases ~AC 400V (±15%)/ 50-60Hz 3 Phases ~AC 400V (±15%)/ 50-60Hz MMA 15.1 11.9 10 ~ 350 20.4 ~ 34 MIG 13.9 11 50 ~ 350 16.5 ~31.5 MIG 13.9 11 50 ~ 350 16.5 ~31.5 70 50 1 .5 ~16 0.6/0.8/0.9/1.0/1.2 40% 158A 204A 0.6/0.8/0.9/1.0/1.2 85% 0.7 IP21S F 880x295x616 48 40 70 1.5 ~16 0.6/0.8/0.9/1.0/1.2 60% 232A 300A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 49 40 70 1.5~16 0.6/0.8/0.9/1.0/1.2 60% 271A 350A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 52 40 70 1.5~16 0.6/0.8/0.9/1.0/1.2 60% 271A 350A 0.6/0.8/0.9/1.0/1.2 85% 0.93 IP21S F 880x295x616 52 MIG 11.1 6.6 50 ~ 250 16.5 ~26.5 MMA 12.6 7.5 10 ~ 250 20.4 ~30 Model TitanMig 268 iXP Model TitanMig 268 iXP

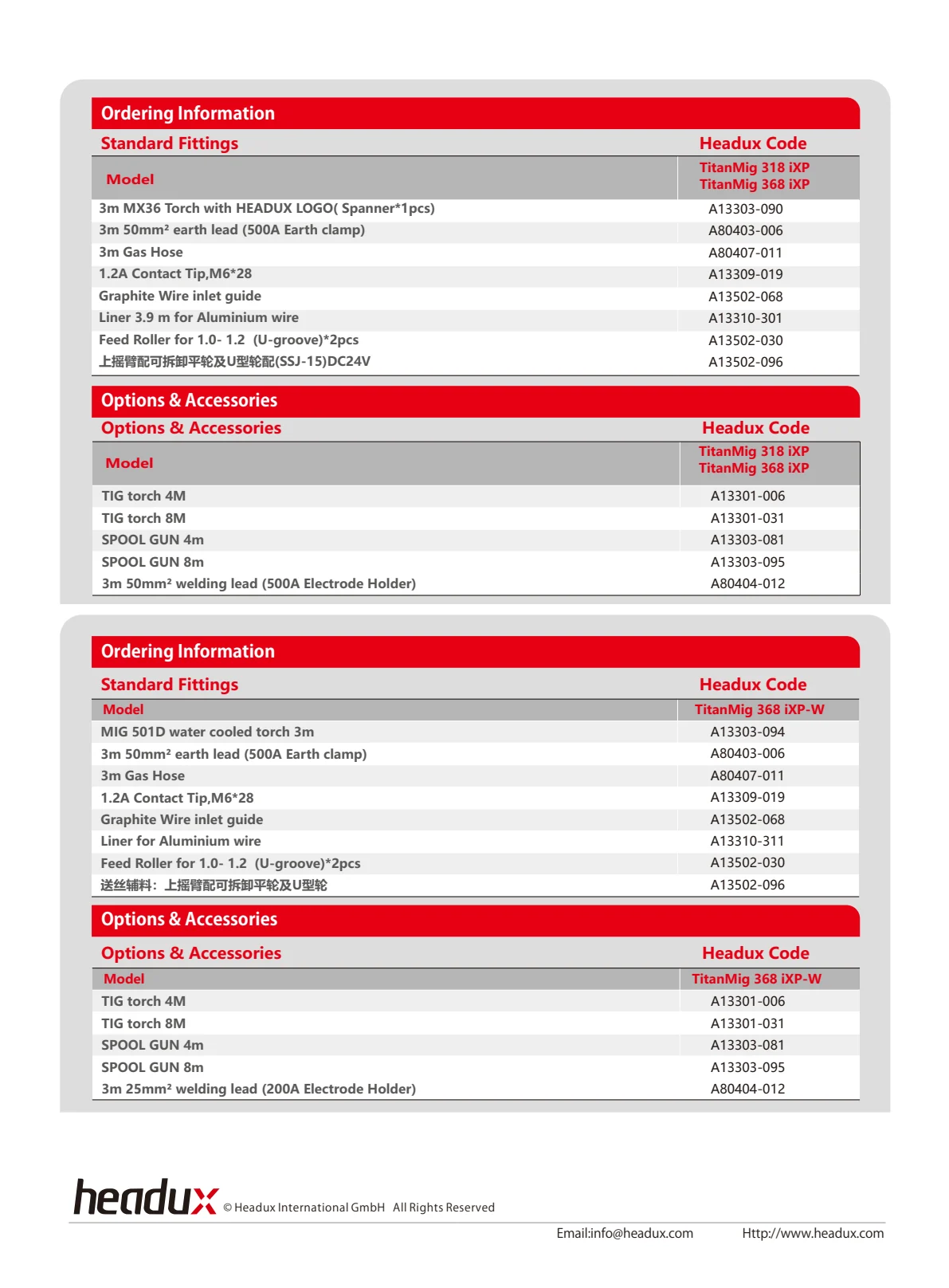

Ordering Information 3m MX36 Torch with HEADUX LOGO( Spanner*1pcs) 3m 50mm² earth lead (500A Earth clamp) 3m Gas Hose 1.2A Contact Tip,M6*28 Graphite Wire inlet guide Liner 3.9 m for Aluminium wire Feed Roller for 1.0- 1.2 (U-groove)*2pcs 上摇臂配可拆卸平轮及U型轮配(SSJ-15)DC24V TIG torch 4M TIG torch 8M SPOOL GUN 4m SPOOL GUN 8m 3m 50mm² welding lead (500A Electrode Holder) A13303-090 A80403-006 A80407-011 A13309-019 A13502-068 A13310-301 A13502-030 A13502-096 A13301-006 A13301-031 A13303-081 A13303-095 A80404-012 Standard Fittings Headux Code Options & Accessories Headux Code Options & Accessories Model Model TitanMig 318 iXP TitanMig 368 iXP TitanMig 318 iXP TitanMig 368 iXP Email:[email protected] Http://www.headux.com © Headux International GmbH All Rights Reserved Ordering Information MIG 501D water cooled torch 3m 3m 50mm² earth lead (500A Earth clamp) 3m Gas Hose 1.2A Contact Tip,M6*28 Graphite Wire inlet guide Liner for Aluminium wire Feed Roller for 1.0- 1.2 (U-groove)*2pcs 送丝辅料：上摇臂配可拆卸平轮及U型轮 TIG torch 4M TIG torch 8M SPOOL GUN 4m SPOOL GUN 8m 3m 25mm² welding lead (200A Electrode Holder) A13303-094 A80403-006 A80407-011 A13309-019 A13502-068 A13310-311 A13502-030 A13502-096 A13301-006 A13301-031 A13303-081 A13303-095 A80404-012 Standard Fittings Headux Code Options & Accessories Headux Code Options & Accessories Model TitanMig 368 iXP-W Model TitanMig 368 iXP-W
